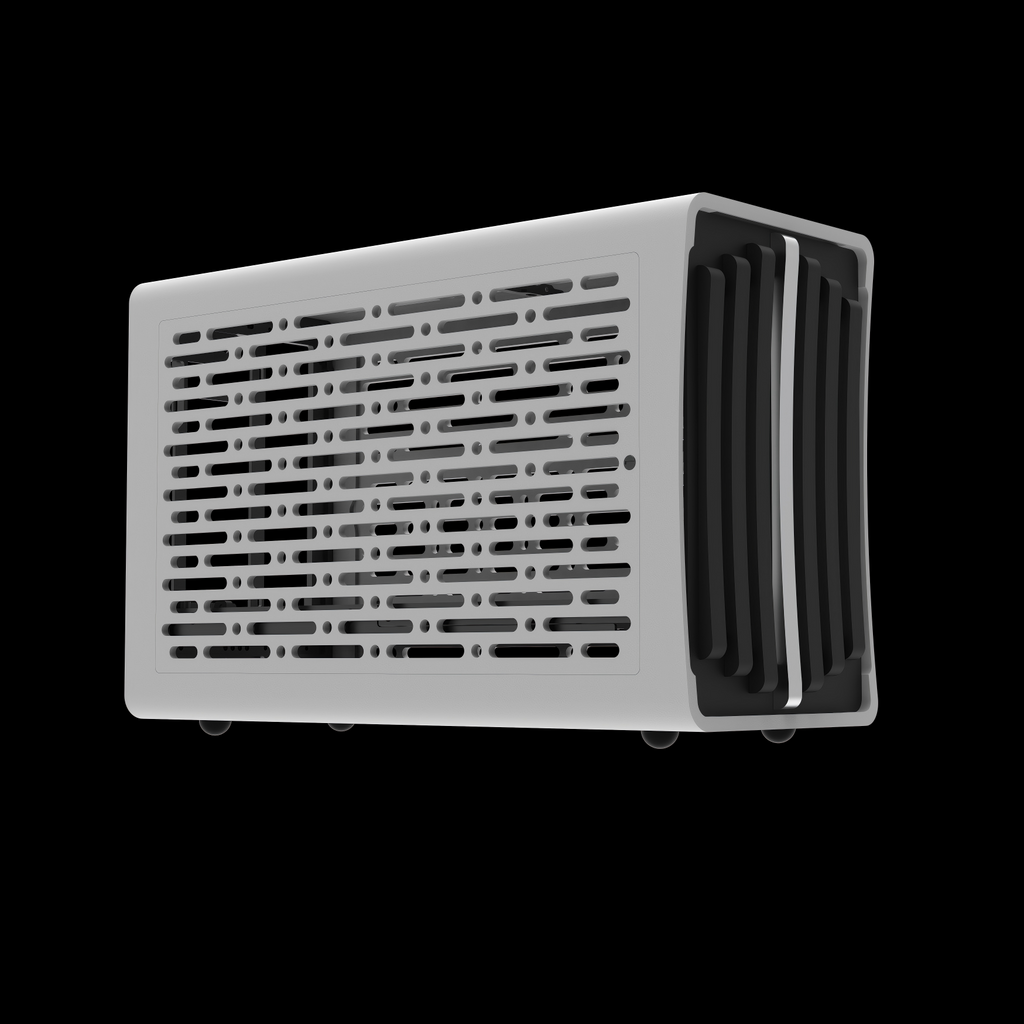

D2S - Anodized Silver

D2S - Anodized Silver

Case + PCIe 4.0 Riser

$195.00

$195.00

D2S - Anodized Silver

1/2

D2S - Anodized Silver

D2S - Anodized Silver

$195.00

$195.00

Shipping calculated at checkout.

*Order dispatch within 3-7 days.

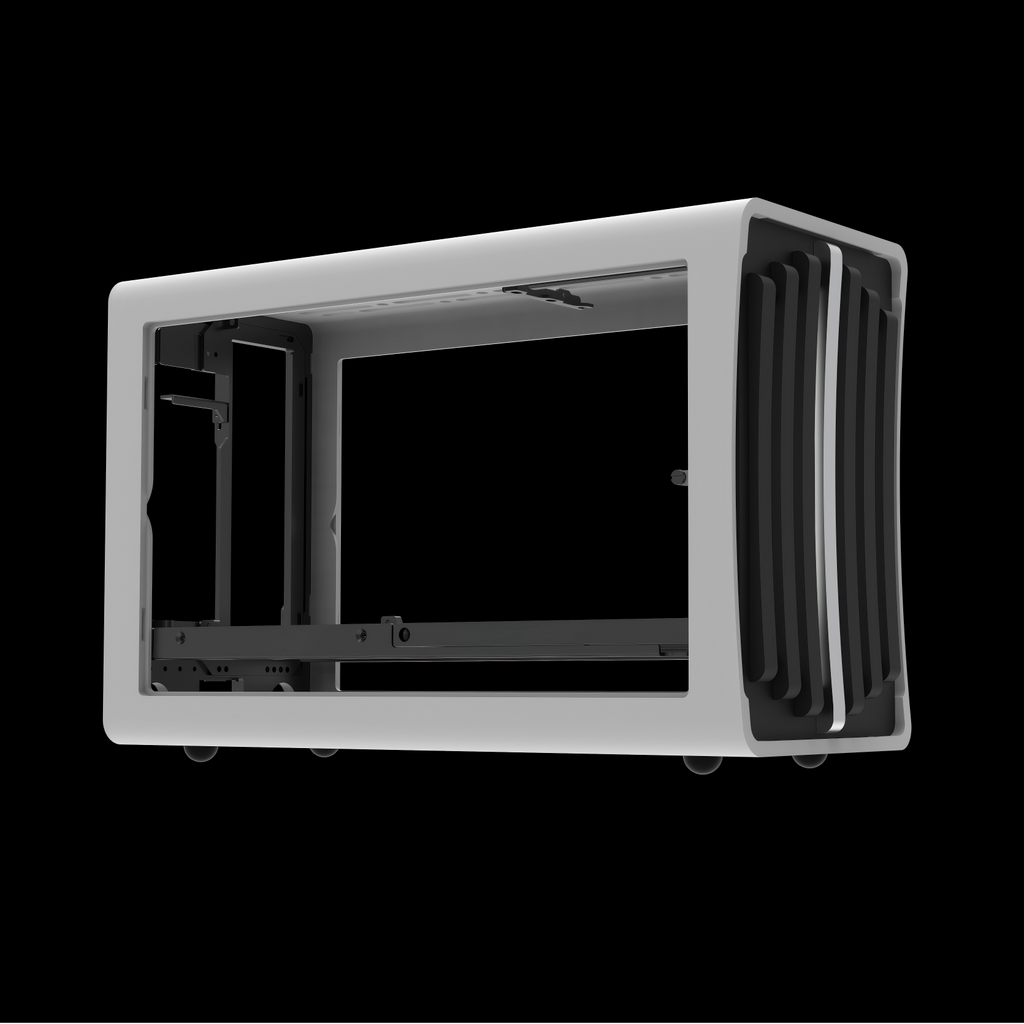

CNC-Machined Aluminum Unibody Shell

The case features a one-piece CNC-machined aluminum outer shell, delivering a cleaner appearance, stronger structural rigidity, and a more premium feel than conventional multi-panel designs.

For custom color custom order. Before purchasing, contact us via email wdeanstudio@gmail.com to discuss the custom color.

Package Dimensions: 370 × 250 × 170 mm
Package Size: 14.6 × 9.8 × 6.7 in

Hardware fit guide

GPU compatibility tabs

Show slot-based compatibility with synced images, CPU cooler guidance, and GPU clearance data.

CPU Clearance

Maximum Height 48mm

AXP90-X47 CU

Alpenfohn Black Ridge

*Standard AIO(None LCD/RGB)

and more...

3.25 GPU Slots

GPU Clearance

140 × 325 × 65(mm)

NVIDIA GeForce RTX3080 FE

NVIDIA GeForce RTX4070 FE
and more...

Specifications

Volume & Footprint

10.9 L

498.36 (cm²) or 77.3 (in²)

Dimension

14.3 × 22 × 34.8 (cm)

5.6 × 8.7 × 13.7 (in)

Material

Up to 16mm CNC Machined Aluminum Block, Anodized
Up to 2mm Carbon Steel, Powder Coated

Shipment Info

4.4 - 5.5 (lbs), 3.2 × 11.8 × 15.8 (in)

2.0 - 2.5 (kg), 8 × 30 × 40 (cm)

Components Support

Mini-ITX or Deep-ITX
SFX or SFX-L(not recommended with AIO) Power Supply

PCIe 4.0 x16 Riser
Front Power Button

Rear M19 Power Button & Fittings

10Gbps+ Front USB-C Cable

Liquid Cooling Support

46mm Maximum Thickness for 120 / 240AIO & Fans:

2 × 12025 Fan (+ 120AIO)

2 × 12015 Slim Fan (+ 240AIO)

Side Mount 240 or 280 Radiator (not recommended) requires 1-slot GPU and Side Fan Bracket :

2 × 120 Fan (+ 240AIO) or 2 × 140 Fan (+ 280AIO)
