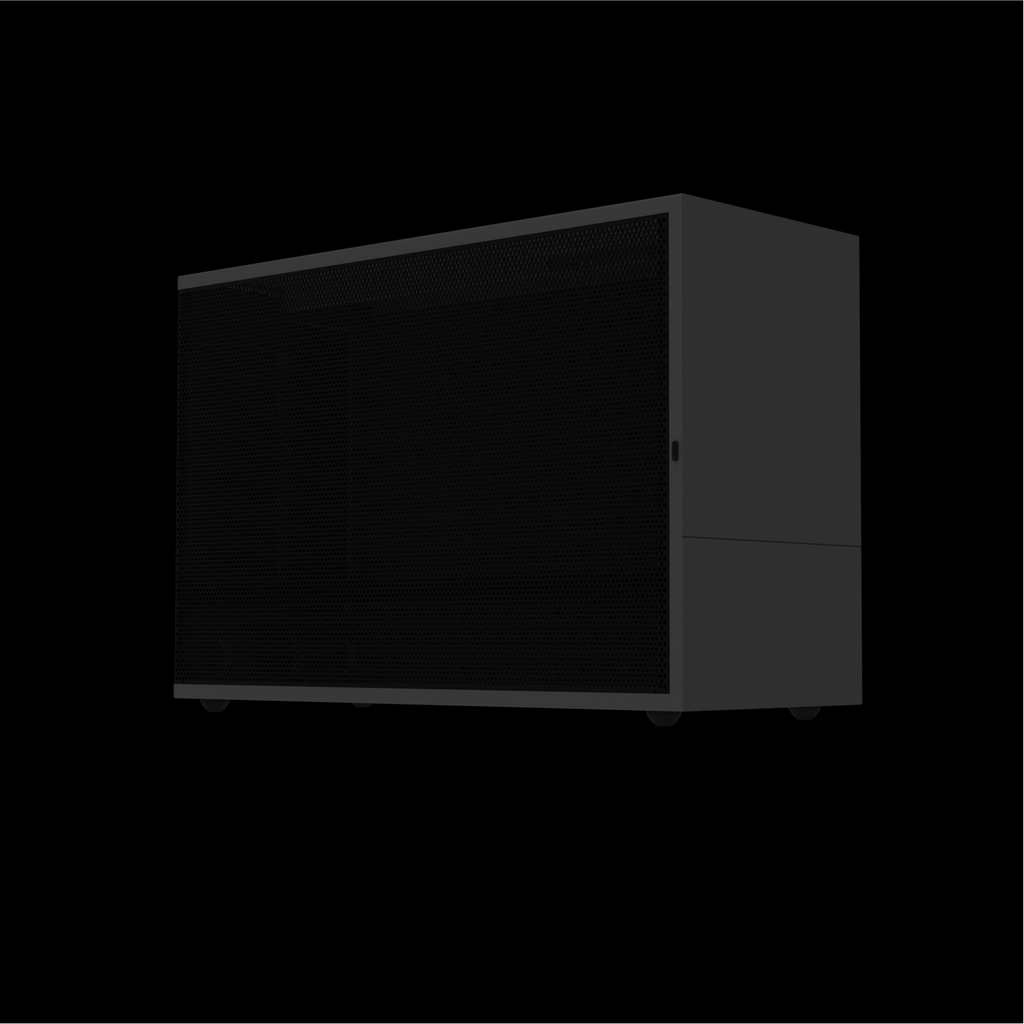

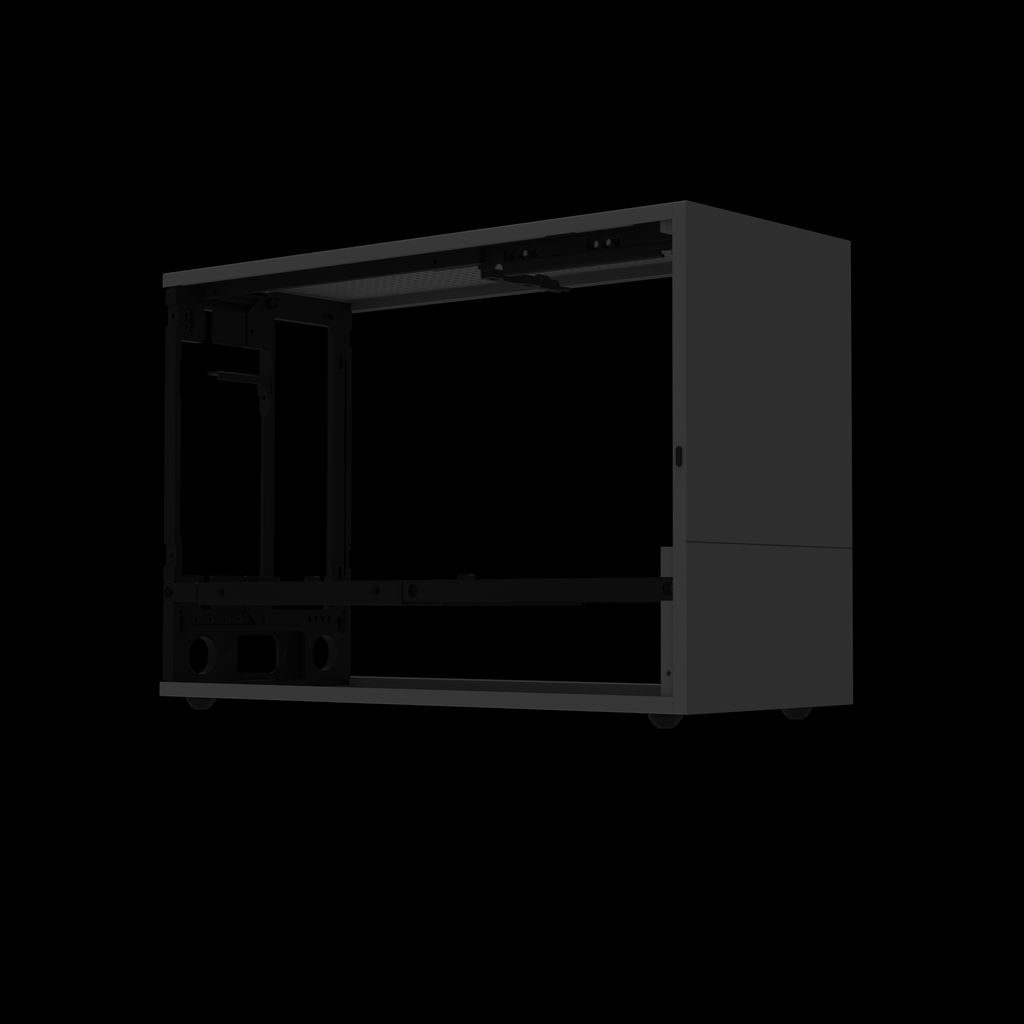

L1 - Anodized Titanium
*Order dispatch within 3-7 days.
Hardware fit guide
Show slot-based compatibility with synced images, CPU cooler guidance, and GPU clearance data.
Maximum Height 48mm
AXP90-X47 CU
Alpenfohn Black Ridge
*Standard AIO(None LCD/RGB)
and more...
140 × 325 × 65(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more...
Maximum Height 53mm
AXP90-X47 CU
ID-COOLING IS-47-XT
*Standard AIO(None LCD/RGB)
and more...
140 × 325 × 60(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more...
Maximum Height 58mm
ID-COOLING IS-50X
NZXT Kraken 240
*Standard 120/240 AIO (w/ 12015)
and more...
140 × 325 × 55(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more...
Maximum Height 63mm
Black Ridge with Top 12015
NZXT Kraken Elite
*Most 120/240 AIO (w/ 12015)
and more...
140 × 325 × 50(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more...
Maximum Height 68mm
AXP-120-X67
NH-L12 GS Edition
*Most 120/240 AIO (w/ 12015)
and more...
140 × 325 × 45(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more...
Maximum Height 73mm
Scythe Big Shuriken 3
NOCTUA NH-L12S
*120/240 AIO (w/ 12015)
and more...
140 × 325 × 40(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more..
Maximum Height 78mm
NOCTUA NH-L12S
AXP-120-X67 with 12025
*120/240 AIO (w/ 12015)
and more...
140 × 325 × 35(mm)
NVIDIA GeForce RTX3080 FE
NVIDIA GeForce RTX4070 FE
and more...
Height 83(mm)
NOCTUA NH-L12S
AXP-120-X67 with 12025
*120/240 AIO (w/ 12015)
and more...
140 × 325 × 30(mm)
NVIDIA GeForce RTX4090 FE
NVIDIA GeForce RTX4080 FE
NVIDIA GeForce RTX3090 FE
Maximum Height 88mm
NH-L12S with 12015
AXP-120-X67 with 12025
*120/240 AIO (w/ 12015)
and more...
140 × 325 × 25(mm)
NVIDIA RTX 4000 Ada
and more...
Maximum Height 93mm
NOCTUA NH-L12
*120/240 AIO (w/ 12015)
*Side Radiator for Custom Loop
and more...
140 × 325 × 20(mm)
NVIDIA RTX 4000 Ada
and more...
9.95 (L)
452.25 (cm²) or 70.1 (in²)
13.5 × 22 × 33.5 (cm)
5.3 × 8.7 × 13.2 (in)
Up to 16mm CNC Machined Aluminum Block, Anodized
Up to 2mm Carbon Steel, Powder Coated
4.4 - 5.5 (lbs), 3.2 × 11.8 × 15.8 (in)
2.0 - 2.5 (kg), 8 × 30 × 40 (cm)
Mini-ITX or Deep-ITX
SFX or SFX-L(not recommended with AIO) Power Supply
PCIe 4.0 x16 Riser
Front Power Button
Rear M19 Power Button & Fittings
10Gbps+ Front USB-C Cable
46mm Maximum Thickness for 120 / 240AIO & Fans:
2 × 12025 Fan (+ 120AIO)
2 × 12015 Slim Fan (+ 240AIO)
Side Mount 240 or 280 Radiator (not recommended) requires 1-slot GPU and Side Fan Bracket :
2 × 120 Fan (+ 240AIO) or 2 × 140 Fan (+ 280AIO)
